Improved harness for breathing apparatus

0001The present invention relates to a harness for breathing apparatus, in particular, a harness for breathing apparatus having a structural support member comprising guide channels for flexible conduits.

0002Self-contained breathing apparatus (SCBA) harnesses comprise a structural support member in the form of a back plate (or back frame), a pair of shoulder straps and a waist belt. The back plate is provided with a valve towards the lower end and a retaining strap. In use, a cylinder of breathable gas is attached to the valve and is secured to the back plate by means of the retaining strap. A number of flexible hoses extend from the valve to the shoulder straps so that breathing apparatus worn by the user may be conveniently connected thereto.

0003It is known to provide channels on the back plate for guiding the flexible hoses from the valve to the shoulder strap. The positions of these channels usually determine which of the shoulder straps the hoses are positioned on. However, individual users, or groups of users, have different preferences as to where the hoses are positioned.

0004For example, certain fire-fighting brigades specify that all of the hoses must be worn on the left shoulder strap whilst other brigades specify that the hoses must be worn on the right shoulder strap. Further, an individual may prefer to have one of the hoses on the left shoulder and another on the right.

0005In order to accommodate individual users', or groups of users', preferences, either differently configured back plates must be produced, which is expensive, or the hoses must be routed out of the guide channels, which can result in the hoses presenting a snagging risk.

0006<patcit id="pcit0001" dnum="EP1952718A"><text>EP1952718</text></patcit> discloses a harness comprising a back plate, a sliding plate, a pair of shoulder straps, and a belt. Two air supply hoses are connected to a valve for supplying breathable gas, one to the breathing apparatus of the harness wearer and one to a pressure gauge. There is a longitudinally extending guide channel for retaining a hose on either side of the sliding plate.

0007It is therefore desirable to provide a versatile back plate.

0008According to a first aspect of the present invention there is provided a harness for breathing apparatus, according to the appended independent claim 1. Further optional features are recited in the appended dependent claims.

0009The left guide channel and the right guide channel may each accommodate at least two flexible conduits. The harness may further comprise a cross guide channel extending transversely across the structural support member from one side to the other side for accommodating at least one flexible conduit. The cross guide channel preferably extends across an upper portion of the structural support member. The guide channels may be located on the rear of the structural support member.

0010In a preferred embodiment, at least one of the flexible conduits extends from the front of the lower portion of the structural support member and passes through an opening in the back plate to the rear of the structural support member before extending along the structural support member in a guide channel.

0011Retaining means may be provided for retaining the or each flexible conduit in the or each guide channel. The retaining means may comprise clamping elements provided in the or each guide channel. Alternatively or additionally, the or each guide channel may be shaped to provide the retaining means.

0012In a preferred embodiment, the upper portion of the structural support member comprises a yoke portion having left and right shoulder strap attachment portions to which the first ends of the left and right shoulder straps are attached respectively, at least one of the shoulder strap attachment strap portions having first and second guide channels arranged to guide the or each flexible conduit to the position on the respective shoulder strap. The left and right shoulder strap attachment portions may each have first and second guide channels.

0013The or each flexible conduit may be arranged to be held between a guide channel of the yoke portion and a shoulder strap.

0014The flexible conduits may include a high-pressure hose and a medium-pressure hose. The flexible conduits may include one or more electrical cables.

0015Embodiments of the present invention will now be described, by way of example only, with reference to the accompanying drawings, in which: <ul id="ul0001" list-style="none"><li><figref idref="f0001">Figure 1</figref> schematically shows a front view of a back plate for a harness for breathing apparatus according to an embodiment of the present invention;</li><li><figref idref="f0002">Figure 2</figref> schematically shows a rear view of the back plate of <figref idref="f0001">Figure 1</figref>;</li><li><figref idref="f0003">Figure 3</figref> schematically shows a front view of a harness for breathing apparatus comprising the back plate of <figref idref="f0001">Figures 1</figref> and <figref idref="f0002">2</figref>;</li><li><figref idref="f0004">Figure 4</figref> schematically shows a rear view of the harness of <figref idref="f0003">Figure 3</figref>;</li><li><figref idref="f0005">Figure 5</figref> schematically shows a rear view of the back plate alone with flexible conduits located in guide channels in a first configuration;</li><li><figref idref="f0006">Figure 6</figref> schematically shows a rear view of the back plate alone with flexible conduits located in guide channels in a second configuration;</li><li><figref idref="f0007">Figure 7</figref> schematically shows a rear view of the back plate alone with flexible conduits located in guide channels in a third configuration;</li><li><figref idref="f0008">Figure 8</figref> schematically shows a front view of a harness for breathing apparatus comprising the back plate of <figref idref="f0001">Figures 1</figref> and <figref idref="f0002">2</figref> in an alternative arrangement;</li><li><figref idref="f0009">Figure 9</figref> schematically shows a rear view of the back plate alone with flexible conduits located in guide channels in a first configuration;</li><li><figref idref="f0010">Figure 10</figref> schematically shows a rear view of the back plate alone with flexible conduits located in guide channels in a second configuration; and</li><li><figref idref="f0011">Figure 11</figref> schematically shows a front view of the back plate alone with flexible conduits located in guide channels in a third configuration.</li></ul>

0016<figref idref="f0001"><b>Figure 1</b></figref> shows a structural support member 10 (hereinafter referred to as a back plate) for a harness for breathing apparatus. The back plate 10 has a front face 12 which is arranged to have a cylinder of breathable gas mounted thereto. The back plate has a yoke 14 in an upper region of the back plate 10. The yoke 14 comprises left and right shoulder strap attachment portions 16, 18 that allow the upper ends of left and right shoulder straps to be attached to the back plate 10. Towards a lower end of the back plate 10 there is provided left and right shoulder strap attachment portions 20, 22 that allow the lower ends of left and right shoulder straps to be attached to the back plate 10.

0017The lower portion of the back plate 10 also comprises a reducer-valve mounting portion 24 which allows a gas-cylinder reducer valve to be mounted to the back plate 10. An opening 26 is provided in the back plate through which in use, flexible conduits can pass. First and second side handles, or legs 11, are provided which enable the back plate 10 to be carried by a user.

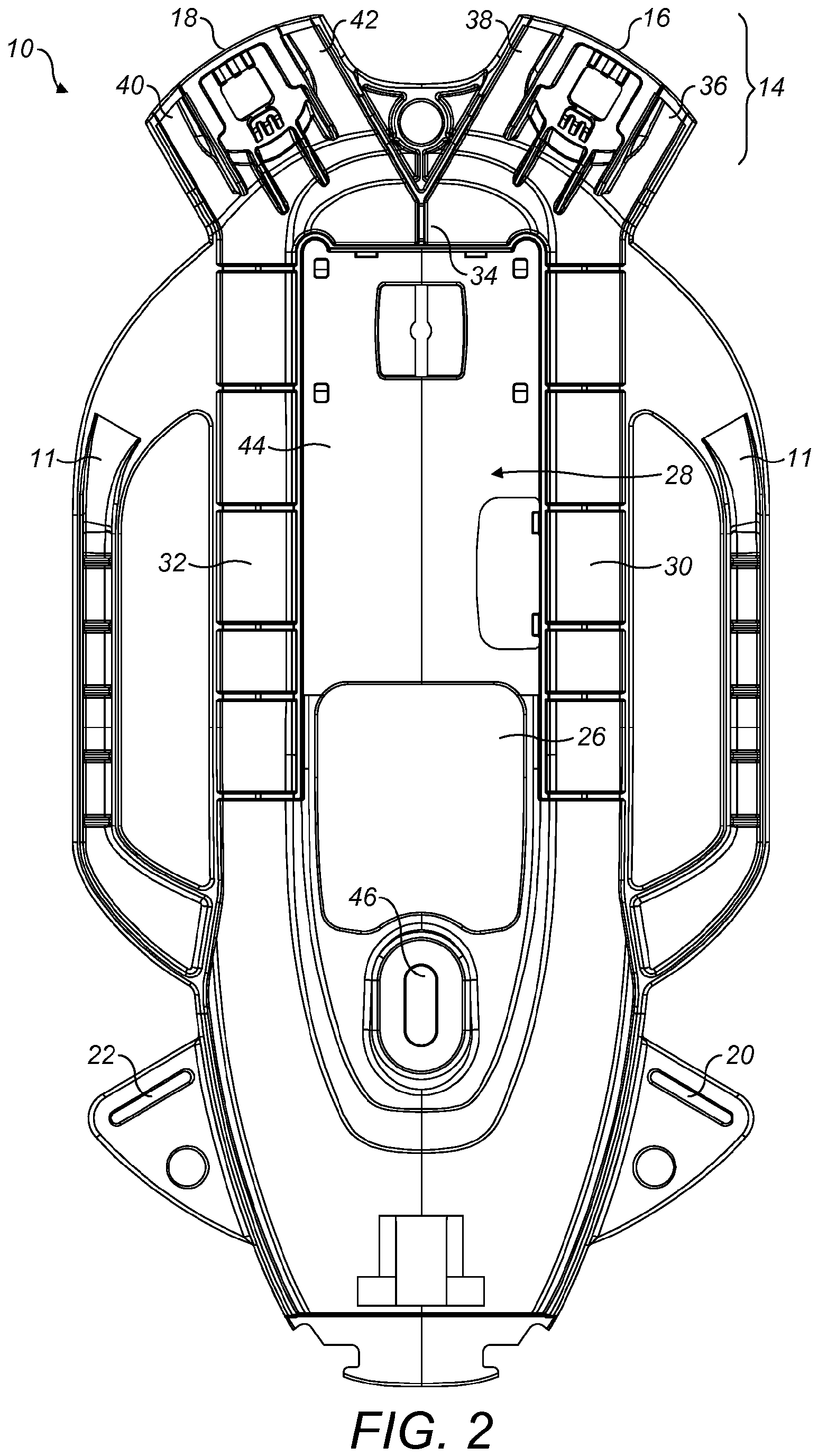

0018<figref idref="f0002"><b>Figure 2</b></figref> shows the rear side 28 of the back plate 10. The rear side 28 of the back plate 10 comprises left and right guide channels 30, 32 that extend longitudinally along the left and right sides of the back plate 10 respectively, from a lower portion to an upper portion. A cross guide channel 34 is also provided that extends transversely across the back plate 10 from a left side to a right side. The left (or first) end of the cross guide channel 34 is adjacent to the upper end of the left guide channel 30 and the right (or second) end of the cross guide channel 34 is adjacent to the end of the upper right guide channel 32.

0019In this embodiment the left and right guide channels 30, 32 are each arranged to accommodate two flexible conduits. The left and right guide channels 30, 32 may in other embodiments comprise a first left channel and a second left channel, and a first right channel and a second right channel. For flexibility, at least one of the left and right guide channels is arranged to accommodate at least two flexible conduits.

0020The guide channels 30, 32 are shaped with projections within and along their length that are arranged to retain flexible conduits within the channels. However, as will be readily apparent to one skilled in the art, other means for retaining flexible conduits within the channels are possible.

0021The left and right shoulder strap attachment portions 16, 18 of the yoke 14 are also adjacent to the upper ends of the left and right guide channels 30, 32 respectively. The left shoulder strap attachment portion 16 is provided with first and second guide channels 36, 38 and the right shoulder strap attachment portion 18 is also provided with first and second guide channels 40, 42.

0022A recess 44 is provided in a central portion of the rear side 28 of the back plate 10. The recess 44 is arranged to accommodate breathing apparatus accessories such as a battery, a pressure transducer or a radio telemetry device, for example. The recess 44 separates the left and right guide channels 30, 32.

0023A waist belt mounting portion 46 is also provided on the rear side 28 of the back plate 10 which enables a waist belt to be pivotally mounted to the back plate 10.

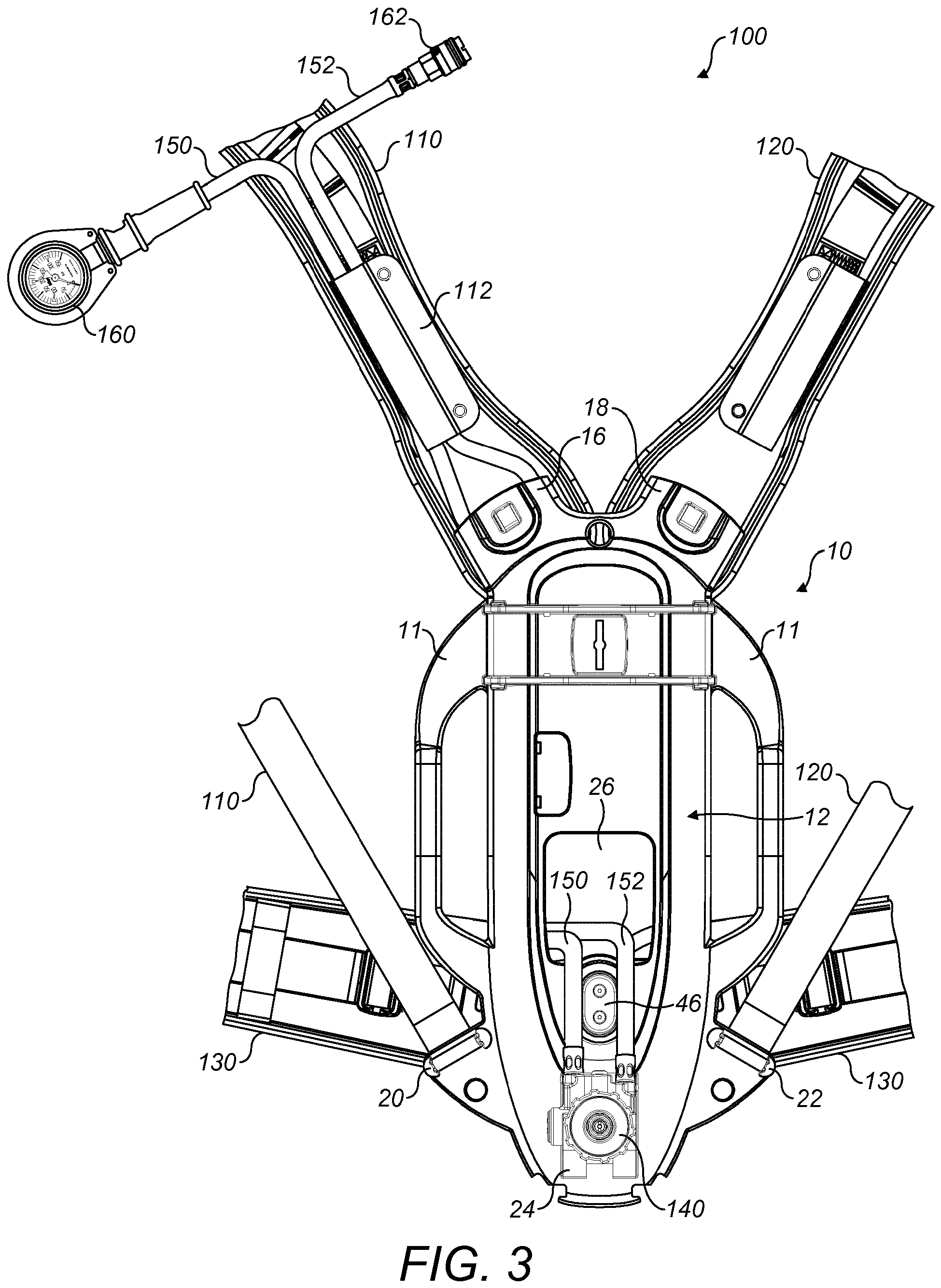

0024<figref idref="f0003"><b>Figure 3</b></figref> shows a harness 100 comprising the back plate 10 as described above. Left and right shoulder straps 110, 120 are attached to the shoulder strap fixing portions 16, 18, 20, 22 and a waist belt 130 is attached to the waist belt mounting portion 46. A gas-cylinder reducer valve 140 is attached to a lower portion of the back plate 10 using the reducer valve mounting portion 24. In this embodiment two flexible conduits 150, 152 extend from the reducer valve 140 to a position on the left shoulder strap 110. The flexible conduits comprise a high-pressure hose 150 and a medium-pressure hose 152. In use, a cylinder of breathable gas (not shown) is mounted to the front 12 of the back plate 10 and is attached at a first end to the reducer valve 140 and at a second end is retained on the back plate 10 using a cylinder-retaining strap (not shown). Breathable gas is delivered through the high-pressure hose 150 to a pressure gauge 160 and through the medium-pressure hose 152 to a connector 162 which can be attached to a breathing mask (not shown). As shown in <figref idref="f0003">Figure 3</figref>, the flexible conduits 150, 152 pass from the front 12 of the back plate 10 to the rear 28 of the back plate 10 through the opening 26.

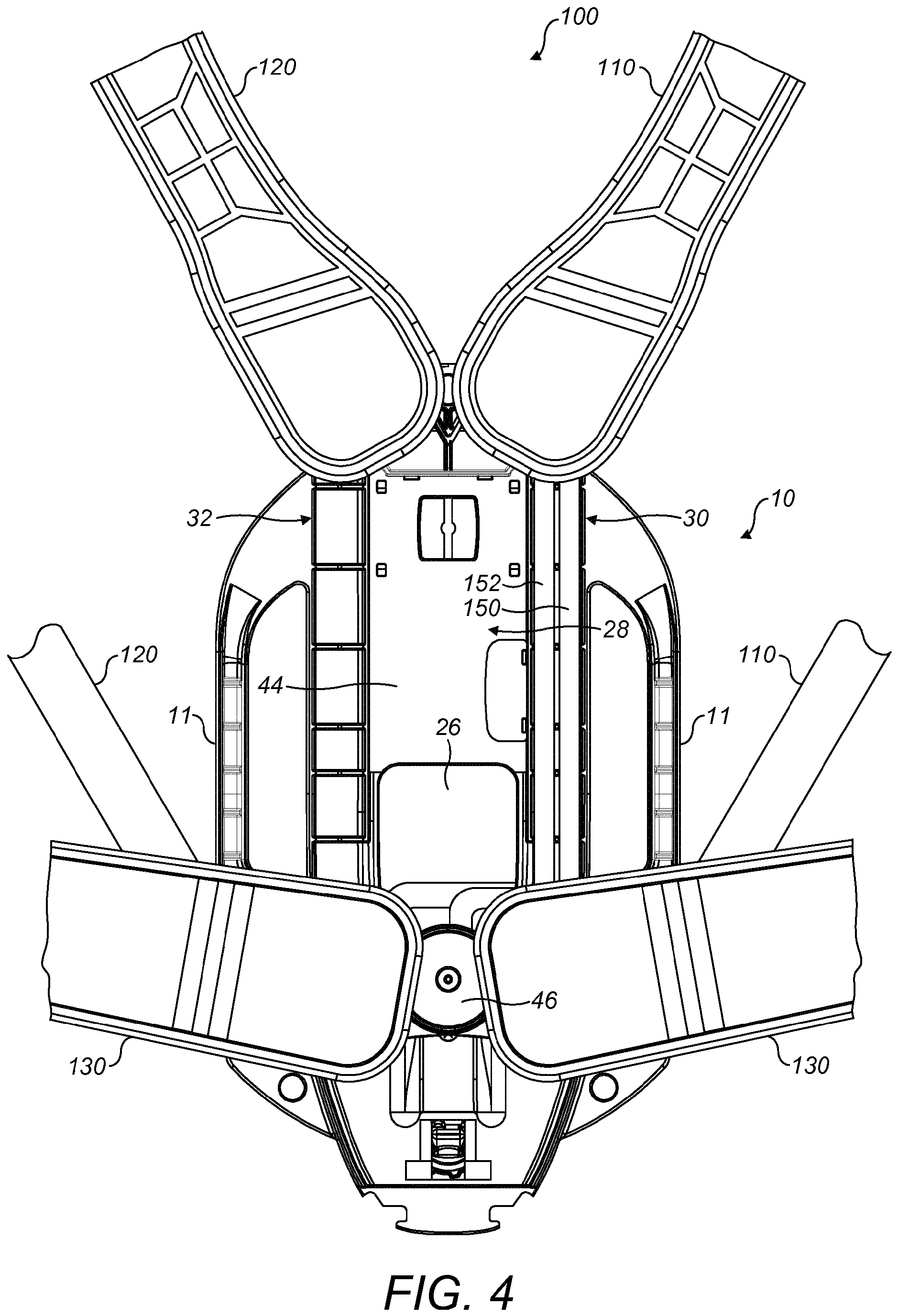

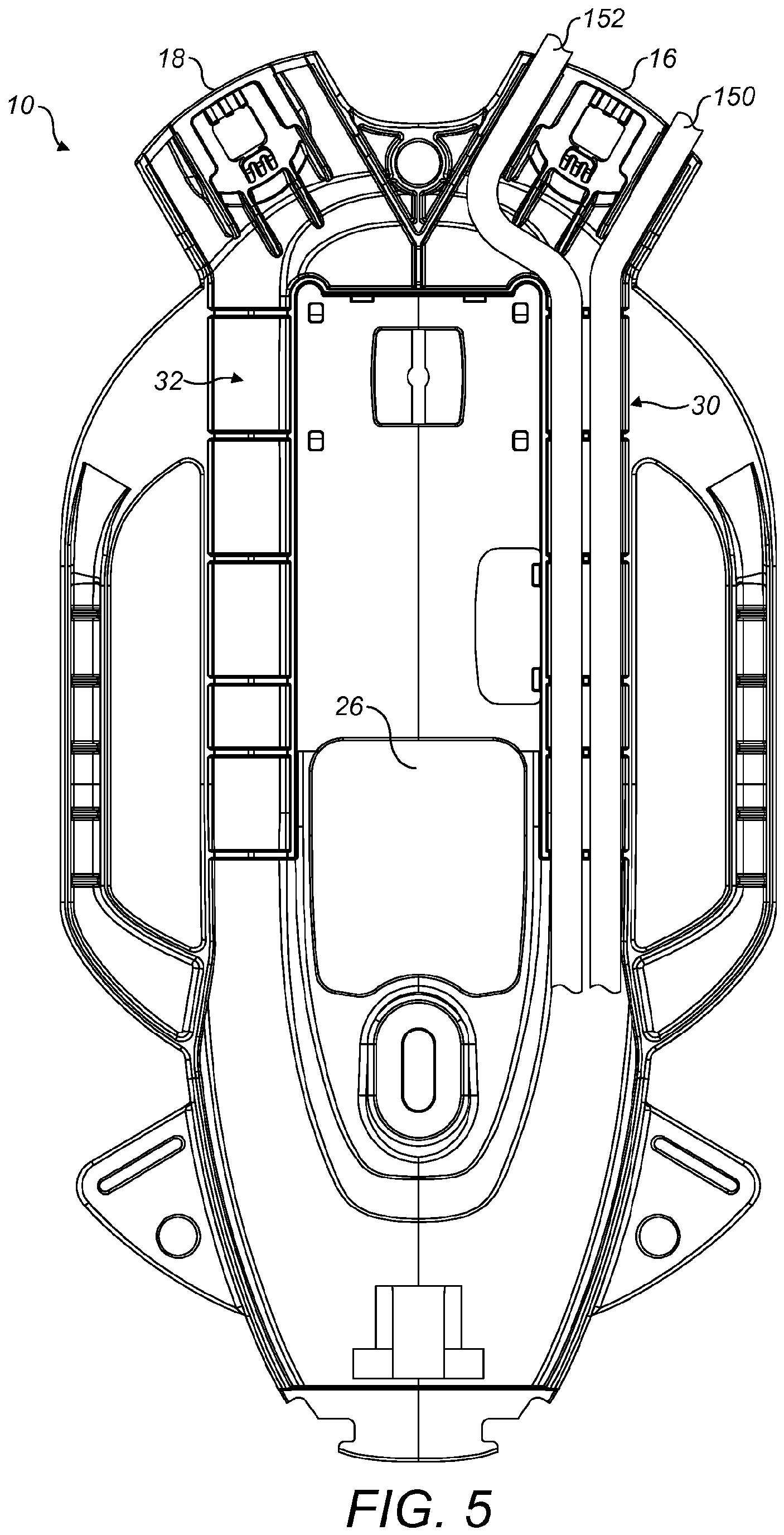

0025Referring now to <figref idref="f0004"><b>Figure 4</b></figref><b>,</b> the high-pressure hose 150 and the medium-pressure hose 152 are located in the left guide channel 30 in the rear side 28 of the back plate 10. They both extend longitudinally up the left side of the back plate 10 in the left guide channel 30. As shown in <figref idref="f0005"><b>Figure 5</b></figref><b>,</b> the high-pressure hose 150 exits the left guide channel 30 and passes into the first guide channel 36 of the left shoulder strap attachment portion 16 and the medium-pressure hose 152 exits the left guide channel 30 and passes into the second guide channel 38 of the left shoulder strap attachment portion 16. The hoses 150, 152 are retained in the first and second guide channels 36, 38 by the shoulder strap 110. The hoses 150, 152 then extend down the shoulder strap 110 as shown in <figref idref="f0003">Figure 3</figref> and are held in place by a flap 112.

0026As shown in <figref idref="f0006"><b>Figure 6</b></figref><b>,</b> if the wearer desires, the high-pressure hose 150 and the medium-pressure hose 152 can be taken out of the left guide channel 30 and located in the right guide channel 32. The hoses 150, 152 are then located in the first and second guide channels 40, 42 of the right shoulder strap attachment portion 18. This allows the high-pressure hose 150 and the medium-pressure hose 152 to be located on the right shoulder strap 120.

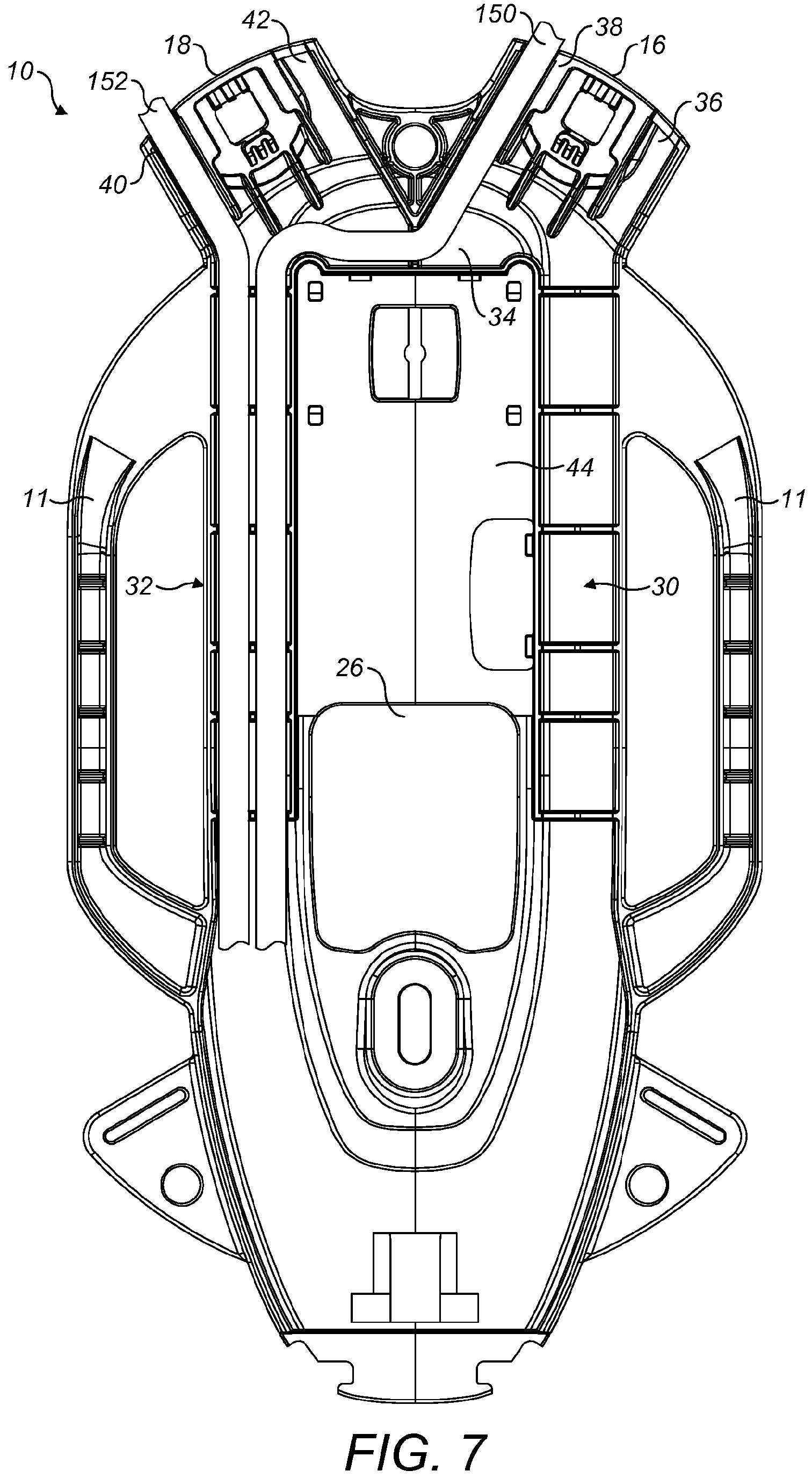

0027In a further configuration and as shown in <figref idref="f0007"><b>Figure 7</b></figref><b>,</b> the high-pressure hose 150 and the medium-pressure hose 152 are located in the right guide channel 32. The high-pressure hose 150 is then located in the cross guide channel 34 to take it from the right side of the back plate 10 to the left side of the back plate 10. The high-pressure hose 150 is then located in the second guide channel 28 of the left shoulder strap attachment portion 16. The medium-pressure hose is located in the first guide channel 40 of the right shoulder strap attachment portion 18. This allows the high-pressure hose 150 to be located on the left shoulder strap 110 and the medium-pressure hose 152 to be located on the right shoulder strap 120.

0028As will be readily apparent to one skilled in the art, other configurations are possible with the guide channel arrangements provided in the back plate.

0029As shown in <figref idref="f0008"><b>Figure 8</b></figref><b>,</b> in a second configuration three flexible conduits 150, 152, 154 extend from the reducer 140 mounted to the back plate 10. A second medium-pressure hose 154 is provided to allow a second user's breathing mask to be attached in an emergency. The three hoses 150, 152, 154 pass through the opening 26 in the back plate 10 to the rear side 28 of the back plate. A high-pressure hose 150 extends to a position on the right shoulder strap 120, a first medium-pressure hose 152 extends to a position on the right shoulder strap 120 and a second medium-pressure hose 154 extends to a position on the left shoulder strap 110. The hoses 150, 152, 154 are held in place by flaps 112, 122.

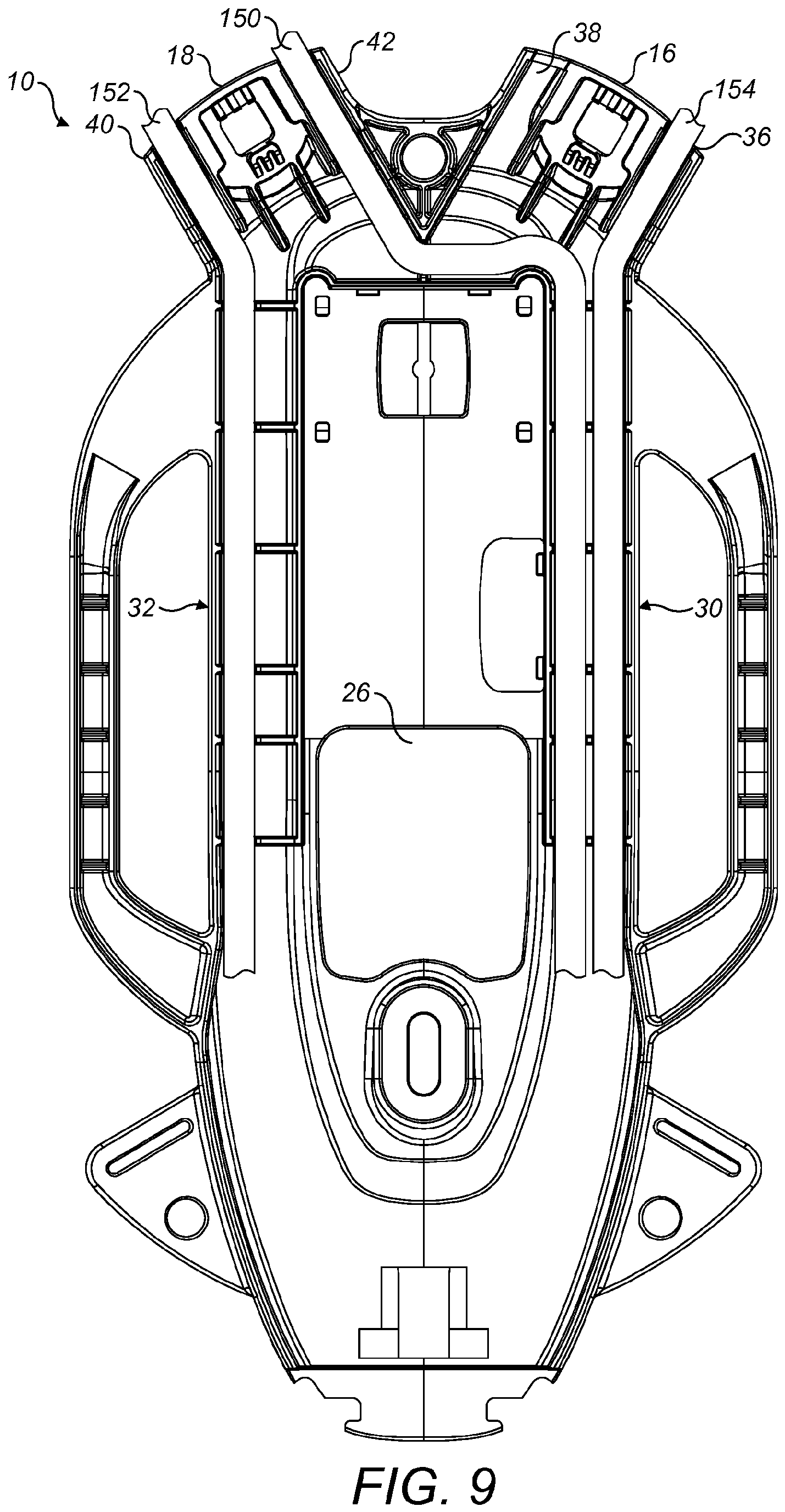

0030Referring to <figref idref="f0009"><b>Figure 9</b></figref><b>,</b> the high-pressure hose 150 and the second medium-pressure hose 154 are located in the left guide channel 30 in the rear side 28 of the back plate 10. The first medium-pressure hose 152 is located in the right guide channel 32. The high-pressure hose 150 is then located in the cross guide channel 34 which takes it from the left side of the back plate 10 to the right side of the back plate 10. The high-pressure hose 150 is then located in the second guide channel 42 of the right shoulder strap attachment portion 18. The first and second medium-pressure hoses 152, 154 are located in the first guide channels 40, 36 of the right and left shoulder strap attachment portions 18, 16 respectively.

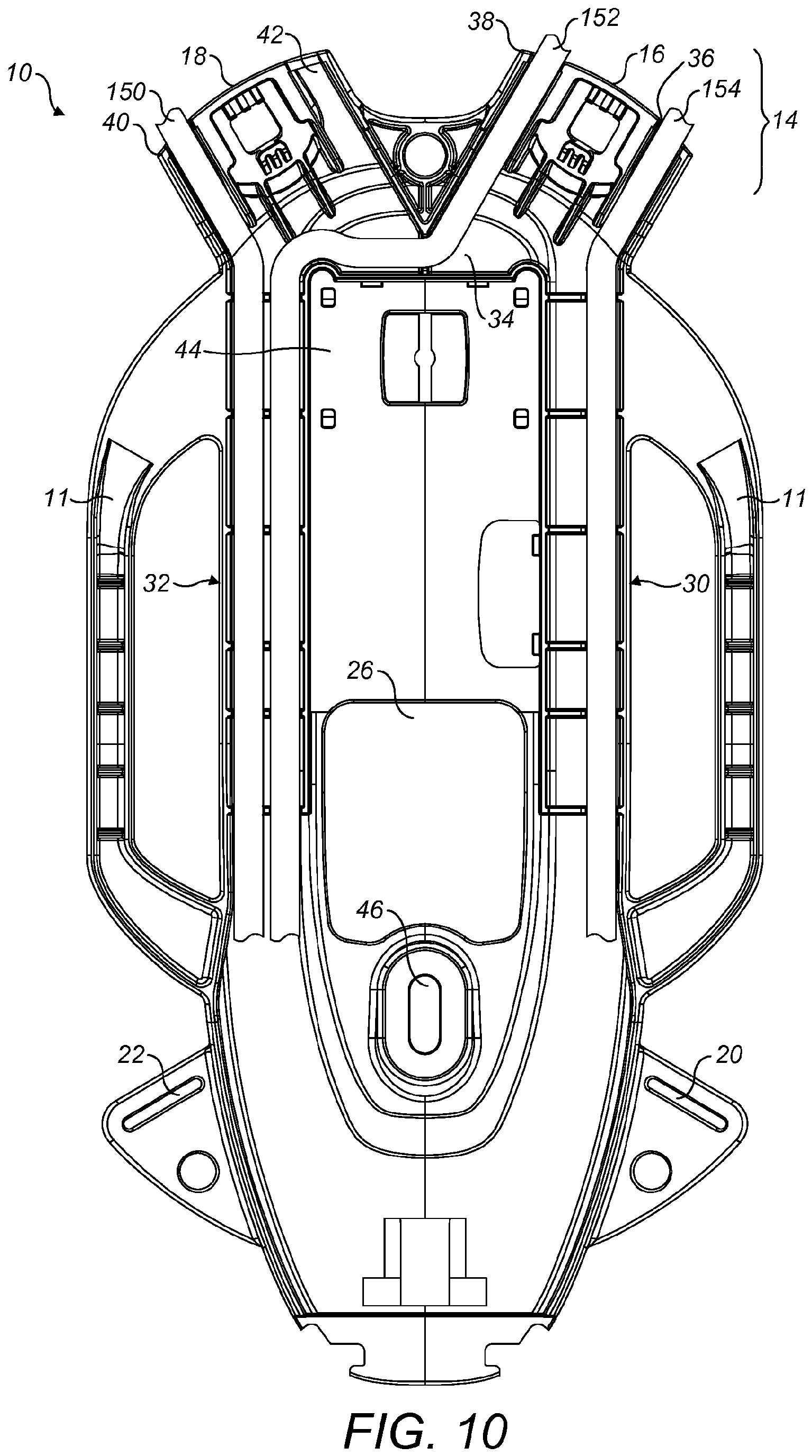

0031In a further configuration shown in <figref idref="f0010"><b>Figure 10</b></figref><b>,</b> the high-pressure hose 150 and the first medium-pressure hose 152 are located in the right guide channel 32 and the second medium-pressure hose 154 is located in the left guide channel 30. The first medium-pressure hose 152 then extends from the right side of the back plate 10 to the left side of the back plate 10 in the cross guide channel 34. The high-pressure hose 150 is located in the first guide channel 40 of the right shoulder strap attachment portion 18 and the first and second medium-pressure hoses 152, 154 are located in the guide channels 16, 18 of the left shoulder strap attachment portion 16. This allows the high-pressure hose 150 to be located on the right shoulder strap 120 and the first and second medium-pressure hoses 152, 154 to be located on the left shoulder strap 110.

0032As will be readily apparent to one skilled in the art, other configurations of the hoses in the guide channels provided are possible.

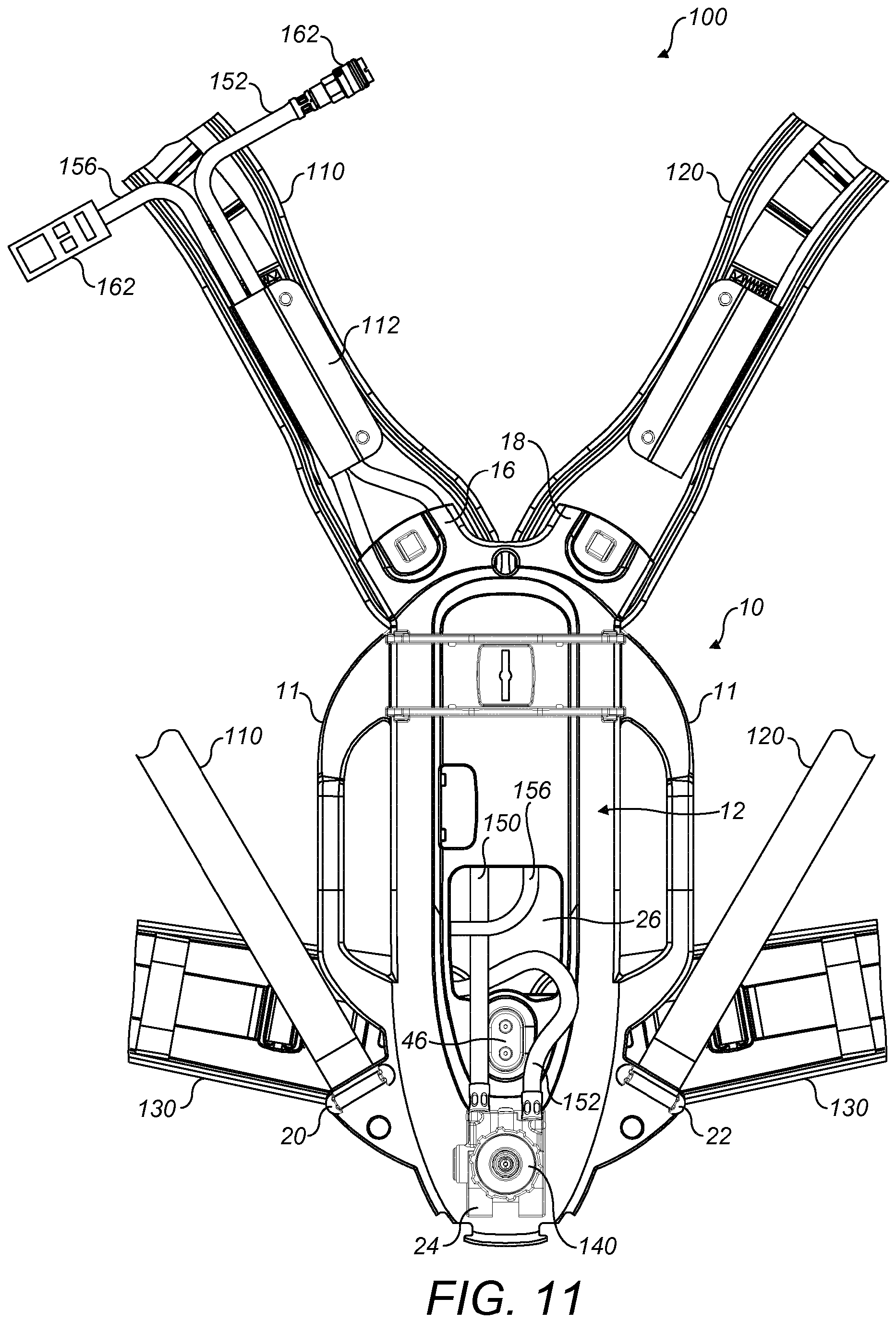

0033As shown in <figref idref="f0011"><b>Figure 11</b></figref><b>,</b> in an alternative arrangement the high-pressure hose 150 extends from the reducer 140 and is attached to a pressure transducer (not shown) that converts the pressure delivered by the hose 150 into an electrical signal. The electrical signal is output through an electrical cable 156 which is located in the left guide channel 30. The electrical cable 156 is positioned on the left shoulder strap 110 and is attached to an electronic display device 162.

0034The arrangement of the guide channels allows a user to configure his breathing apparatus to suit his particular needs or preferences. Different users prefer different arrangements and different breathing apparatuses have different numbers of hoses. The back plate 10 according to the present invention allows a wide range of hose configurations.
